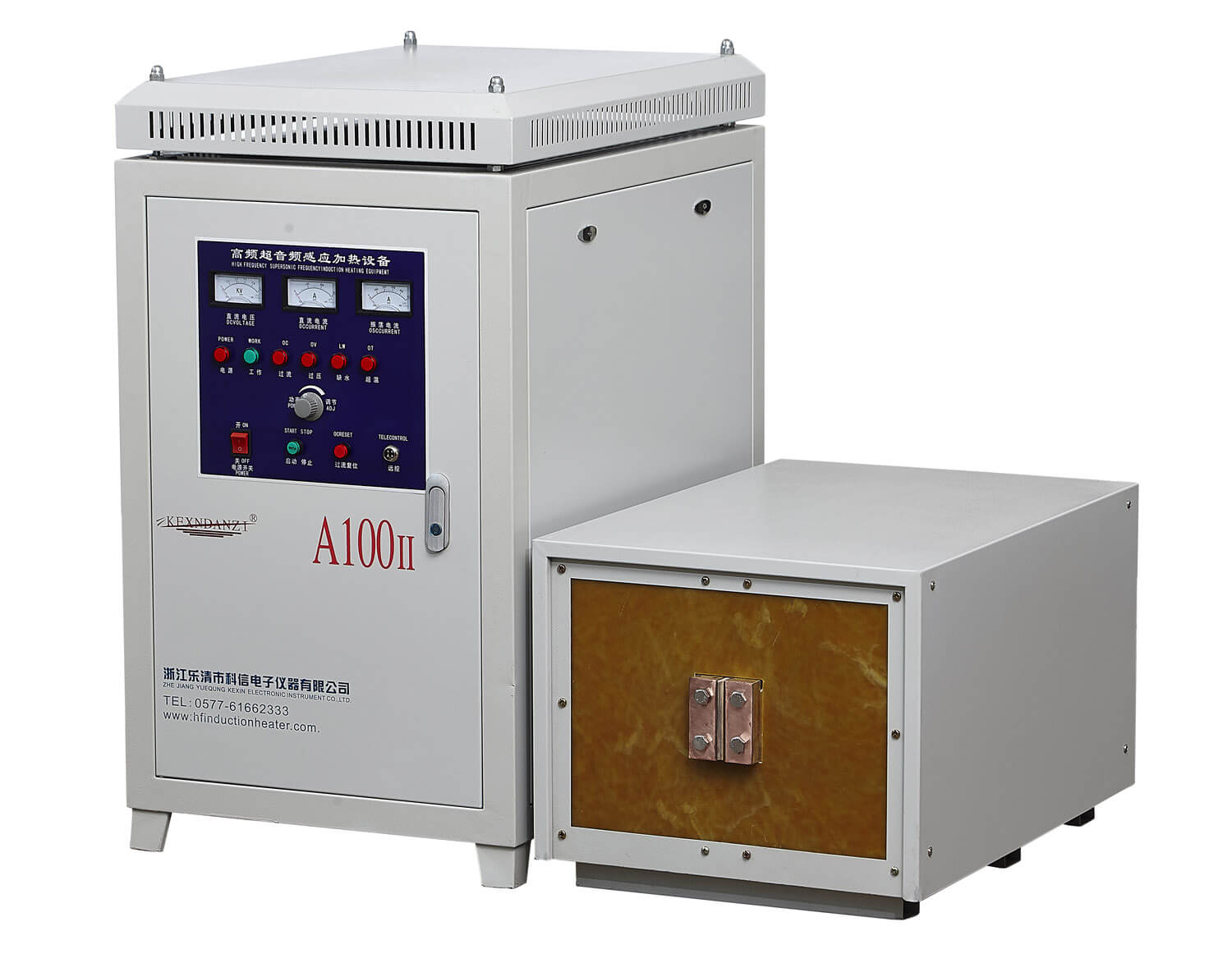

100KW High Frequency Metal Hardening Furnace

Model: KX-5188A100

Rated Power Output:100KW

Frequency Range:10-40KHz

Single Phase InputThree Phase 380V/50Hz

Current RangeThree Phase 5-140A

Get a quote

Please fill out our contact form and we will send you a non-binding offer.

100KW High Frequency Metal Hardening Furnace

What is 100KW High Frequency Metal Hardening Furnace Advantage

The workpiece is heat treated in a metal hardening furnace. The left and right sides are to adjust the characteristics of metal materials and adjust the mechanical properties, strength, hardness, plasticity, toughness and fatigue strength of the high frequency metal hardening furnace. According to the sequence of the whole process, it can be divided into preliminary heat treatment and final heat treatment. Heat treatment and preheat treatment are mainly to improve the cutting performance of materials, such as increasing the hardness of low carbon steel through normalizing, and reducing the hardness of high carbon steel through spheroidization. The final heat treatment is to achieve the required mechanical properties of the parts. After the parts are made, they are quenched in an induction furnace and tempered at a medium temperature.

This problem may also be caused by relatively low insulation resistance or furnace short circuit. For induction heating equipment, we need to use a megohmmeter to detect the resistance of the furnace and eliminate the short-circuit points in the furnace. Then, since the resistance of the steel and the induction coil is low, the overcurrent is maintained. A megohmmeter must be used to detect the resistance of the furnace relative to the induction coil. If the resistance is too low, the furnace needs to be built from the beginning.

The high frequency metal hardening furnace has a deeper depth, higher hardness and better wear resistance than the laser hardened layer. The disadvantage of this technology is that it destroys the surface roughness of the workpiece to a certain extent, and usually requires subsequent machining to Recovery to reduce the surface roughness of the parts after laser melting treatment and reduce the subsequent processing volume. In the melting furnace, the  induction high frequency heating machine produces a special laser melting and quenching coating, which can greatly reduce the surface roughness of the fusion layer.

At present, metallurgical work rolls, guide rails and other workpieces of various materials are all processed by laser melting. Now, the surface roughness is close to the level of laser hardening. High frequency metal hardening furnace tools have been successfully applied to surface strengthening of vulnerable parts in metallurgy, machining and petrochemical industries. Especially for the service life of wearing parts such as front wheels, guide rails, gears, cutting edges, etc., the effect is remarkable, and huge economic and social benefits have been achieved.If you need, please contact us with [email protected].

certificate-3
certificate-2
certificate-1

100KW High-Frequency Metal Hardening Furnace is a new modern method of heating for industrial usage. For many modern manufacturing processes, an induction hardening furnace offers an attractive combination of speed, consistency and control. So on the basis of the magnetic field induction principle, this high frequency metal hardening furnace is widely applicable and suitable for various kinds of the metal material workpieces in many different sizes and shapes. It is mainly used applied to melting, annealing, quenching, welding, heating, brazing, forging, surface hardening, thermal forming and other heat treatment.



100KW High-Frequency Metal Hardening Furnace
Model KX-5188A100
Rated Power Output 100KW
Frequency Range 10-40KHz
Single Phase Input Three Phase 380V/50Hz
Current Range Three Phase 5-140A
Volume (mm³) 780*500*820     730*470*380
Net Weight 150KG
Gross Weight 180KG
Cooling Water Flow Hydraulic Pressure≧0.2MPa; Flow Rate: 5-20L/Min
Cooling Water Temperature ≤40℃
Water Connection 1 inlet and 1 outlet
Packing Method Wooden Box

At the same time, KEXIN also provides you with other high-frequency metal induction welding machines.

How exactly does metal hardening furnace work?



Through the conversion of the high frequency metal hardening furnace, the 50HZ/60HZ alternating current is converted into a direct current voltage, and then the direct current is converted into a 20-40KHZ high-frequency voltage output through the control circuit. The fast-moving high-voltage current will produce high-speed changes in the cable. After the magnetic field cable is in contact with the iron container, the surface of the container will cut off the AC magnetic lines of force and generate alternating current on the metal part at the bottom of the container. The vortex causes the iron atoms at the bottom of the container to move irregularly at high speed.



Induction heating is to generate current eddy currents in the inductor coil through alternating current, so that the electron holes in the magnetically conductive objects in the coil move to generate heat. High-frequency induction heating equipment can instantly heat metal objects to any desired temperature, including its melting point.



The high frequency metal hardening furnace tool is composed of bed, loading and unloading mechanism, clamping and rotating mechanism, quenching transformer and resonance tank circuit, cooling system, quenching liquid circulation system, electrical control system, etc. Two main types: vertical and horizontal. The induction hardening process is mainly realized by the cooperation of the hardening machine tool and the medium and high frequency power supply. It is used for various gears, bearings, shaft parts, valves, cylinder liners and various machinery. The parts are quenched and heat treated.
