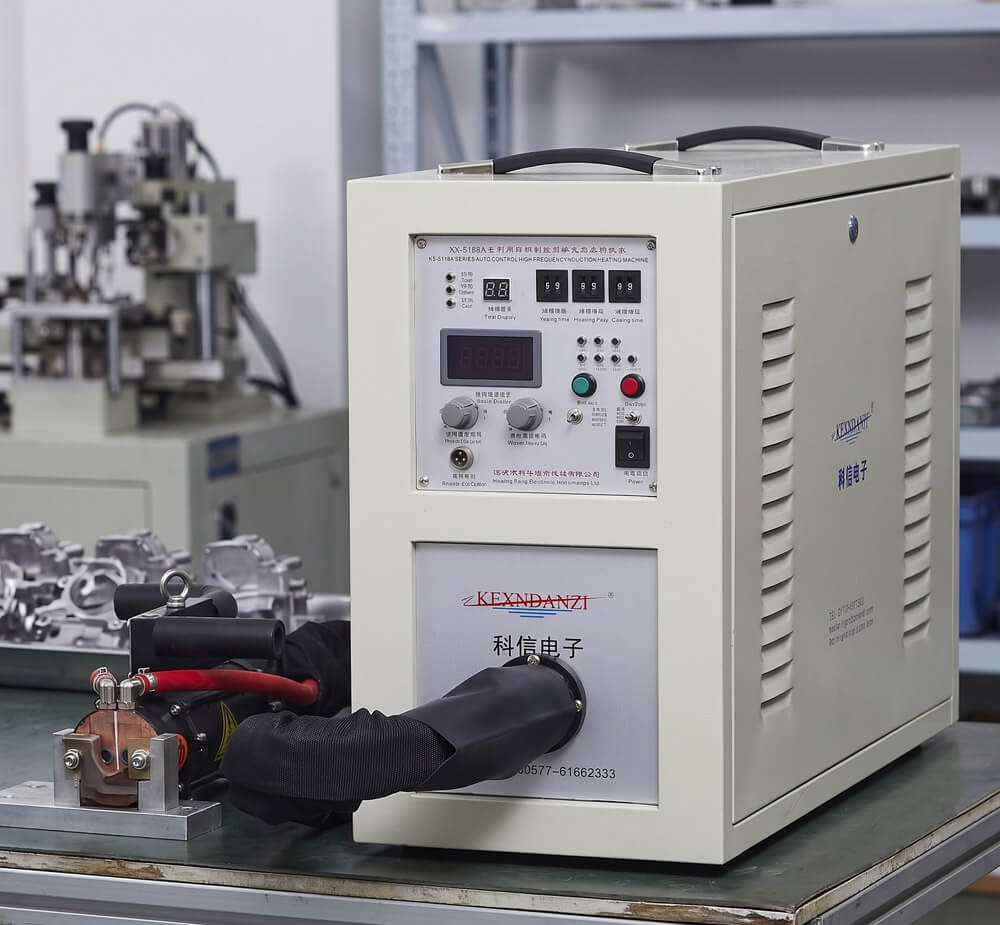

Portable Induction Brazing Machine
High frequency induction heater indeed is a kind of industrial power Supply.It is based on Magnetic field induction principle. It is suitable for various kind of metal material workpiece in different size . It is widely applied to melting，annealing，welding， thermal forming， Forging, hardening and other heat treatment
1-5KG Gold Melting Induction Furnace
Model KX-5188A25M Rated Power Output 125KW Frequency Range 30-100KHz Three Phase Input 380V/50Hz Current Range 2-25A Volume(mm³)480mm*480mm*860mm
Cold Welding Machine
High frequency induction heater indeed is a kind of industrial power Supply.It is based on Magnetic field induction principle. It is suitable for various kind of metal material workpiece in different size . It is widely applied to melting，annealing，welding， thermal forming， Forging, hardening and other heat treatment
200KW High Frequency Induction Hardening Equipment
Model KX-5188A200 Rated Power Output 200KW Frequency Range 10-30KHz Single Phase Input 380V/50Hz Current Range 5-310A Volume(mm³) 930*585*1250mm; 960*510*450mm
60KW High Frequency Induction Melting Furnace
Model KX-5188A60 Rated Power Output 60KW Frequency Range 10-40KHz Single Phase Input 380V/50Hz Current Range 5-90A Volume(mm³) 610mm*450mm*820mm; 570mm*410mm*380mm
15KW Medium Frequency Induction Melting Furnace
Model KXZ-15 Rated Input IPower 15KW Frequency Range 1-20KHz Three Phase Input 380±20%V 50/60Hz Output Current Range 3-22A
50KW High Frequency Induction Heater Machine
Model KX-5188A45 Rated Power Output 45KW Frequency Range 30-60KHz Single Phase Input 380V/50Hz Current Range 3-55A Volume(mm³) 660mm*290mm*410mm; 740mm*340mm*380mm
80KW High Frequency Induction Heating Machine
Model KX-5188A80 Rated Power Output 80KW Frequency Range 10-40KHz Single Phase Input 380V/50Hz Current Range 5-120A Volume(mm³) 780mm*5000mm*820mm; 730mm*470mm*380mm
6KW Ultra High Frequency Induction Brazing Machine
High frequency induction heater indeed is a kind of industrial power Supply.It is based on Magnetic field induction principle. It is suitable for various kind of metal material workpiece in different size . It is widely applied to melting，annealing，welding， thermal forming， Forging, hardening and other heat treatment
25KW Medium Frequency Induction Heating Machine
Model KXZ-25 Rated Input IPower 25KW Frequency Range 1-20KHz Three Phase Input 380±20%V 50/60Hz Output Current Range 5-45A
260KW High Frequency Bearing Induction Heater
Model KX-5188A260 Rated Power Output 260KW Frequency Range 5-30KHz Single Phase Input 380V/50Hz Current Range 10-390A Volume(mm³) 900*585*1300mm; 920*550*490mm
120KW High frequency Induction Heating Machine
Model KX-5188A120 Rated Power Output 120KW Frequency Range 10-30KHz Single Phase Input 380V/50Hz Current Range 5-180A Volume(mm³) 780mm*5000mm*820mm; 730mm*470mm*380mm
Four Ways To Contact Ambrell For Support
What is Induction Heating?
Induction heating is a new technology for heating. In this way, metal objects are heated instantaneously to the required temperature, including the melting point. Unlike other heating methods,
it can produce high temperatures without contact with the metal objects. Such method can directly generate high temperatures inside metal objects. It not only heats the metal object as a whole, but also selectively heats each part locally.
High Frequency Induction Heating Equipment not only has technical advantages,but also a revolution in heating methods. It is also electric energy heating, which can save 40% of electricity compared to traditional furnaces, electric ovens, etc. Both high frequency machines and medium frequency machines have a wide range of applications:
Heat Treatment
Local or whole quenching, annealing, tempering and heat conduction of various metals.
Hot Forming
Whole forging, partial forging, hot upsetting, hot rolling.
Welding
Brazing of various metal products, welding of various tool blades, serrated saw blades, welding of steel pipes, copper pipes and welding of different kinds of metals.
Metal Smelting
Gold, silver, copper, iron, aluminum and other metals (vacuum) smelting, casting and evaporative coating.
There are also some special applications of high frequency heating machine: semiconductor single crystal growth, thermal coordination, bottle heat sealing, toothpaste skin heat sealing, powder coating, metal implant plastics, etc.
Advantages of induction heating
High efficiency and energy saving. It can save 2/3 of the power than the high frequency of the electron tube.
Low maintenance costs. No fragile and expensive tubes.
Special Safety: No high voltage, eliminating the danger of high voltage electric shock.
Easy to Install: Just connect the power supply and water pipes, it can be completed in 10 minutes. Easy operation: user can learn in a few minutes.
Induction technology is not only used in liquid melting and casting of metals, but also has unique advantages in welding. For example, diamond cutter head welding, alloy welding, traditional machining alloy tool welding, mining tools, woodworking tool welding, and so on.
KEXIN provides the portable induction heater machine, 18kW, 25kW, 45kW, 50kW, 80kW, 100kW, 120kW, 160kW high frequency induction heating machine. For more information, you can contact us by phone or email at your convenience.
