Prinova Global

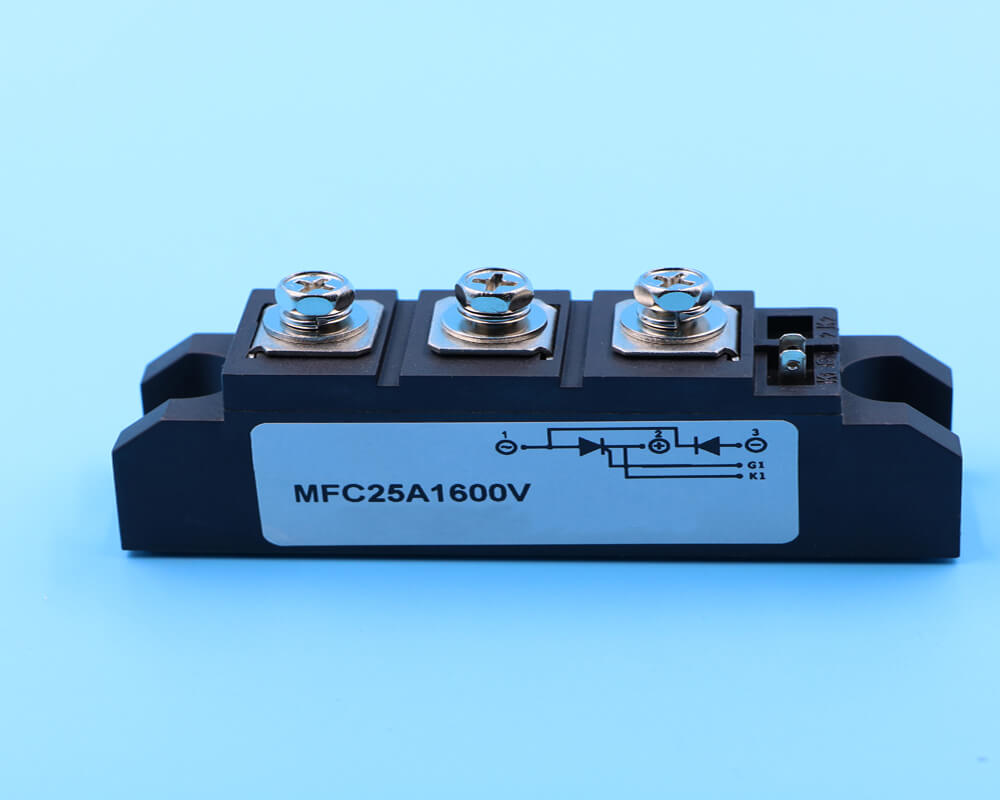

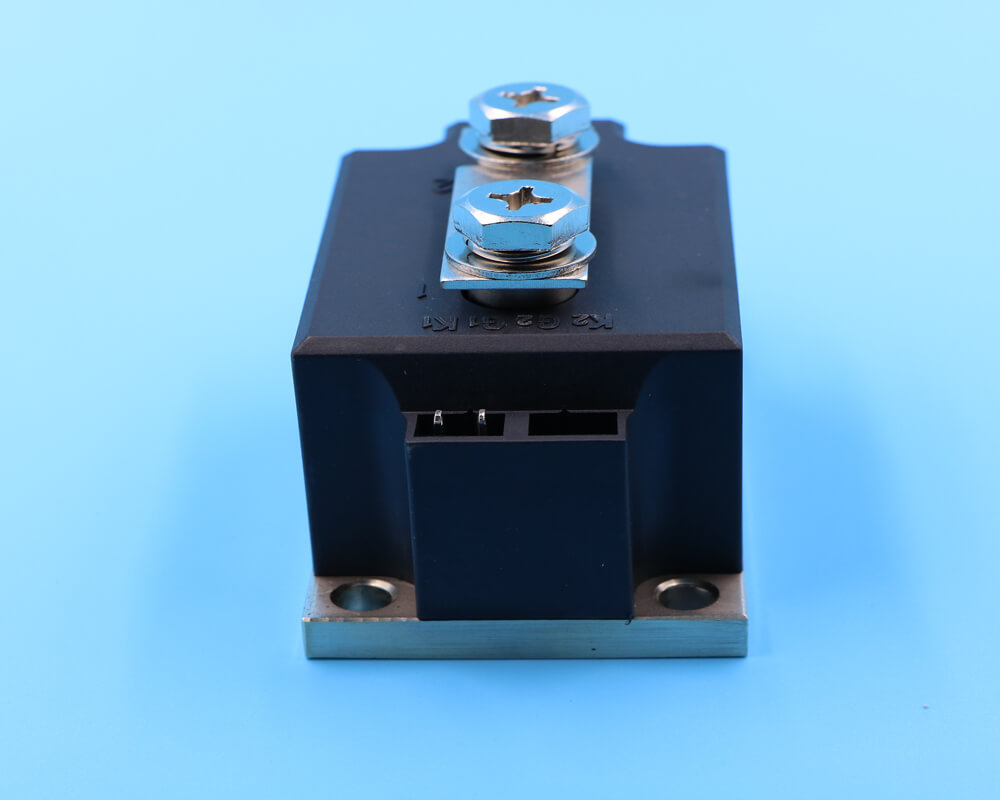

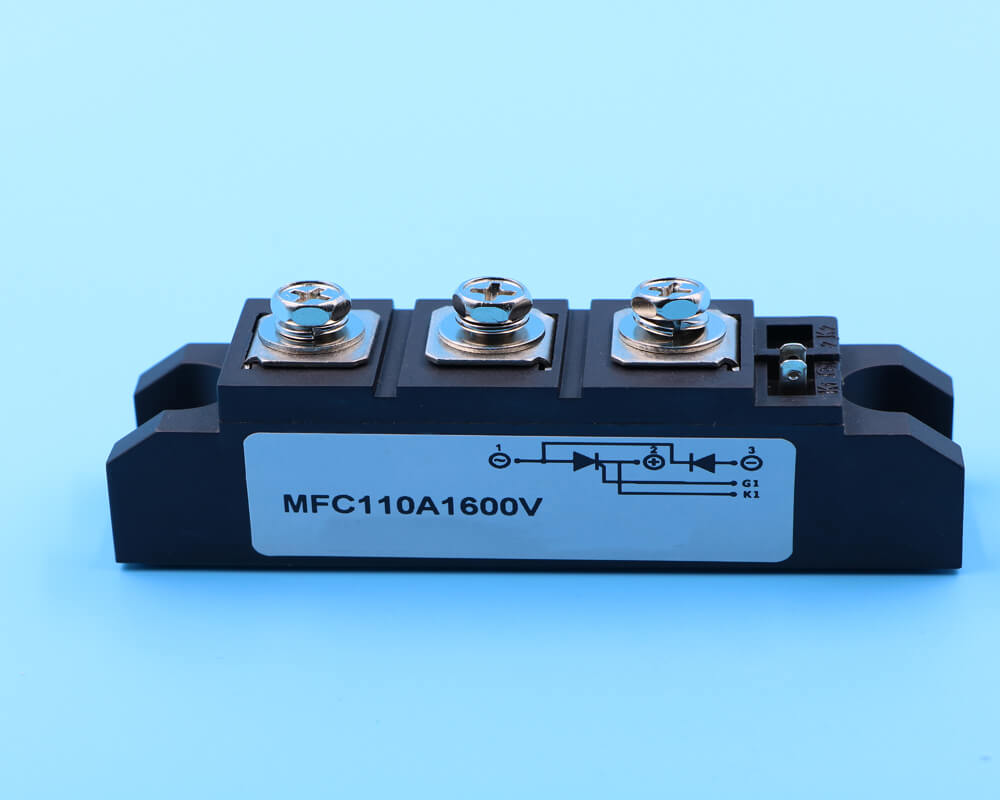

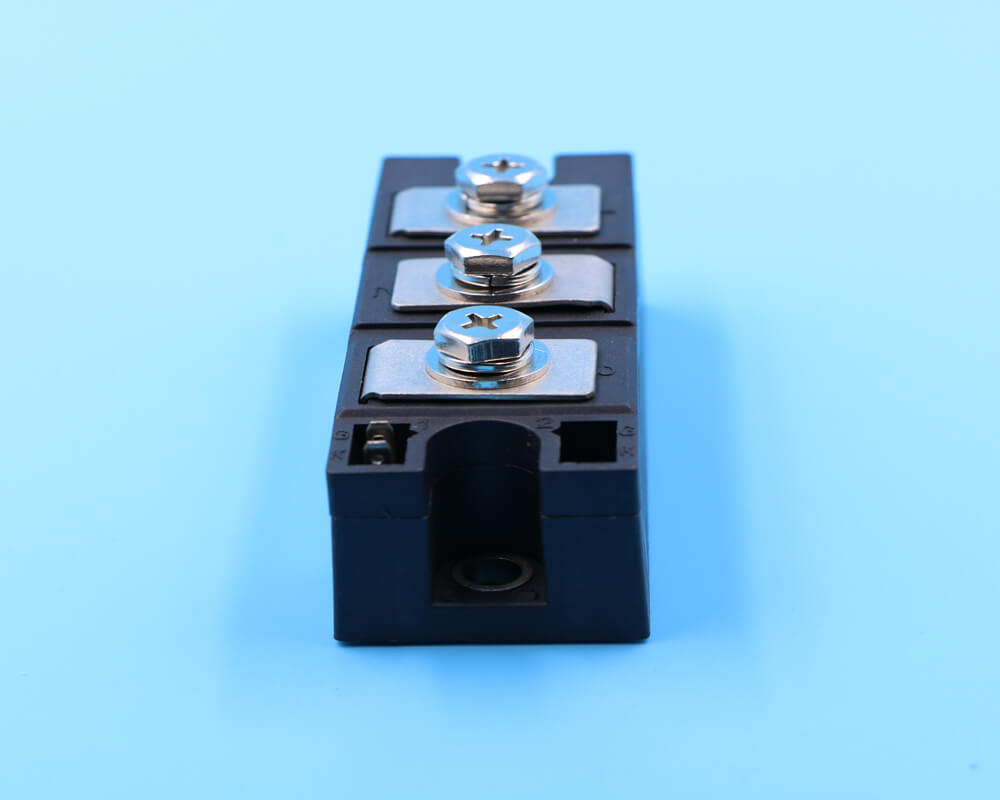

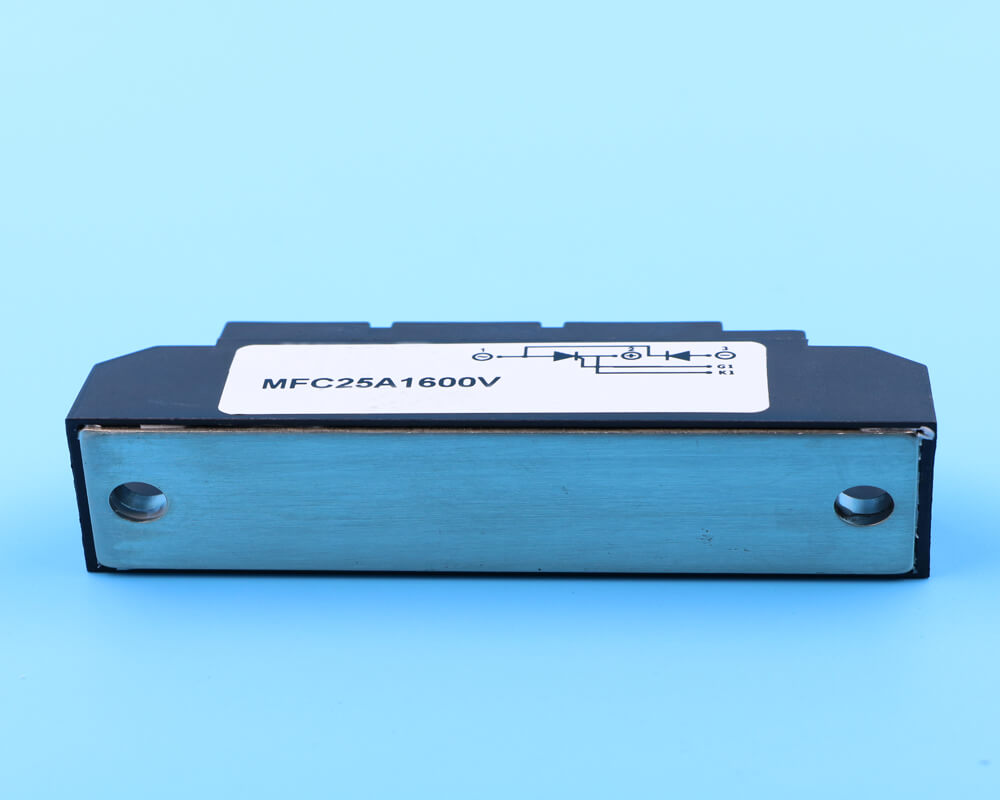

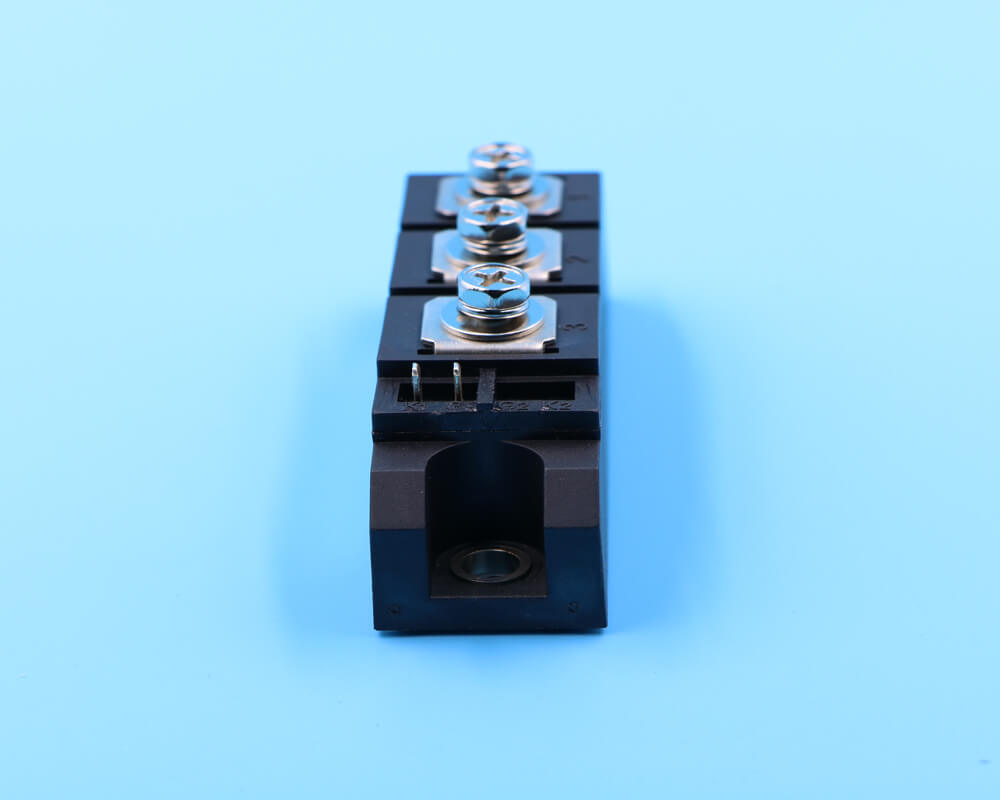

Thyristor-diode Module
Base & chip insulation AC voltage 2500V
International standard packing
Excellent temperature feature
≥300A could chose water-cool
Easy to install
Request A Quote
THYRISTOR-DIODE MODULE (MFC,MFK,MFA,MFX)
*Means water-cool
Explanation
IGT,VGT,IH are all TA=25℃ test data,others are all TA=Tjm test data.
I2t=I2TSM×tW/2:tW=Half sine wave current,when at 50Hz,I2t=0.005I2TSM(A2S)
When at 60Hz,ITSM(8.3ms)=ITSM(10ms)×1.066,Tj=Tjm I2t(8.3ms)=I2t(10ms)×0.943,Tj=Tjm
Part number type & circuit
Applications
AC DC motor control
Motor soft start
Industry heat-up control
Rectificate power supply
Welder
Frequency transformer
UPS power supply
Battery change & dischange
Ordering Information Table
Packing Details
Export standard packing, inner carton outer wooden box and double protection
