An air-cooled chiller rejects heat directly to the ambient air. Because it does not require cooling towers or cooling water pumps, it is typically installed outdoors.
Its relatively simple structure and minimal piping requirements allow for flexible installation, making it well suited for replacement projects or capacity expansion.

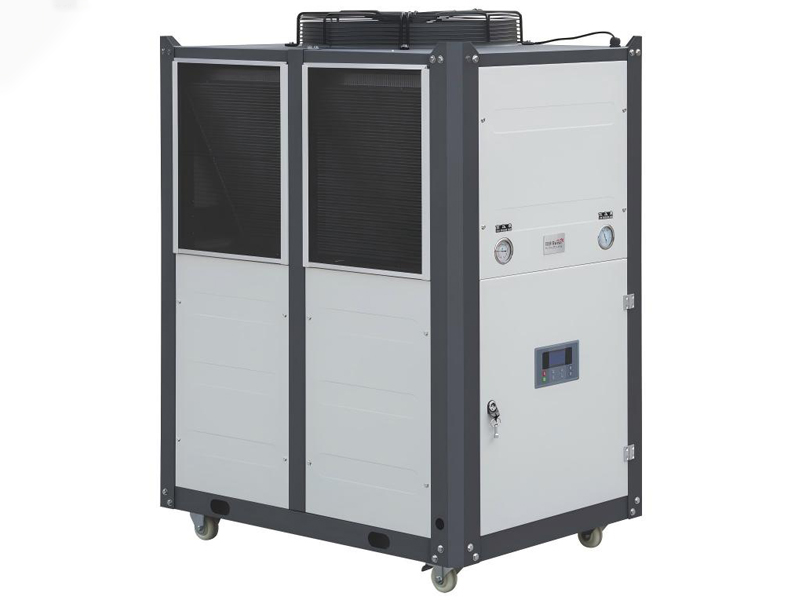

Model ：KX-6HP
Cooling Cpacity: 12556Kcal/h
Rated Power: 5.8KW
Power Supply: Three Phase 380V/50Hz
Rated Current: 10A
Request A QuoteAir-cooled chillers are commonly adopted in facilities where securing cooling water is difficult or where cooling tower installation is constrained. Their compact footprint and short construction period also make them ideal for retrofit projects and installation in existing buildings.
An air-cooled chiller rejects heat directly to the ambient air. Because it does not require cooling towers or cooling water pumps, it is typically installed outdoors.
Its relatively simple structure and minimal piping requirements allow for flexible installation, making it well suited for replacement projects or capacity expansion.
| TECHNICAL PARAMETER | |||
| Model | KX-6HP | ||
| Cooling Capacity | kW | 17.7 | |
| kcal/h | 15222 | ||
| Power Supply | V/ph/Hz | 380/3/50 | |
| Rated Power | kW | 5.8 | |
| Rated Current | A | 10 | |
| Compressor | Type | Flexible vortex | |
| Power | kW | 4.5 | |
| Number | 1 | ||
| Condenser | Type | High‑efficiency V‑shaped microchannel finned type | |
| Maximum pressure | bar | 45 | |
| Condenser fan | Fan Type | External rotor fan | |
| Fan Number | net | 1 | |
| Evaporator | Type | 316 stainless steel coil type | |
| Water‑side pressure | bar | 16 | |
| Water pump (optional) | Type | Stainless steel centrifugal | |
| Lift | m | 24 | |
| Power | kW | 0.75 | |
| Flow | m³/h | 3 | |
| Water tank capacity (optional) | L | 100 | |
| Connector size | DN | 25 | |
| Security Protection | High and low voltage, overload, freeze protection, time delay, over‑temperature, and flow protection. | ||
| Noise | db(A) | 72 | |
| Unit weight | kg | 210 | |
| External dimensions (L*W*H) | mm | 1000*640*1370 | |
More melting induction furnaces of Kexin are suitable for metal melting : high frequency melting furnace , medium frequency induction machine.
Export standard packing, inner carton outer wooden box and double protection.
