KX-5188D Cold welding Machine

Model :KX-5188D

Power :220v+/-20% / 50Hz

Output Pulse Frequency :1-10KHz

Power Consumption :10-3000W

Instantaneous Max. Output Power Over: 40KW

Volume (mm ³) 380mm*155mm*250mm

Get a quote

Please fill out our contact form and we will send you a non-binding offer.

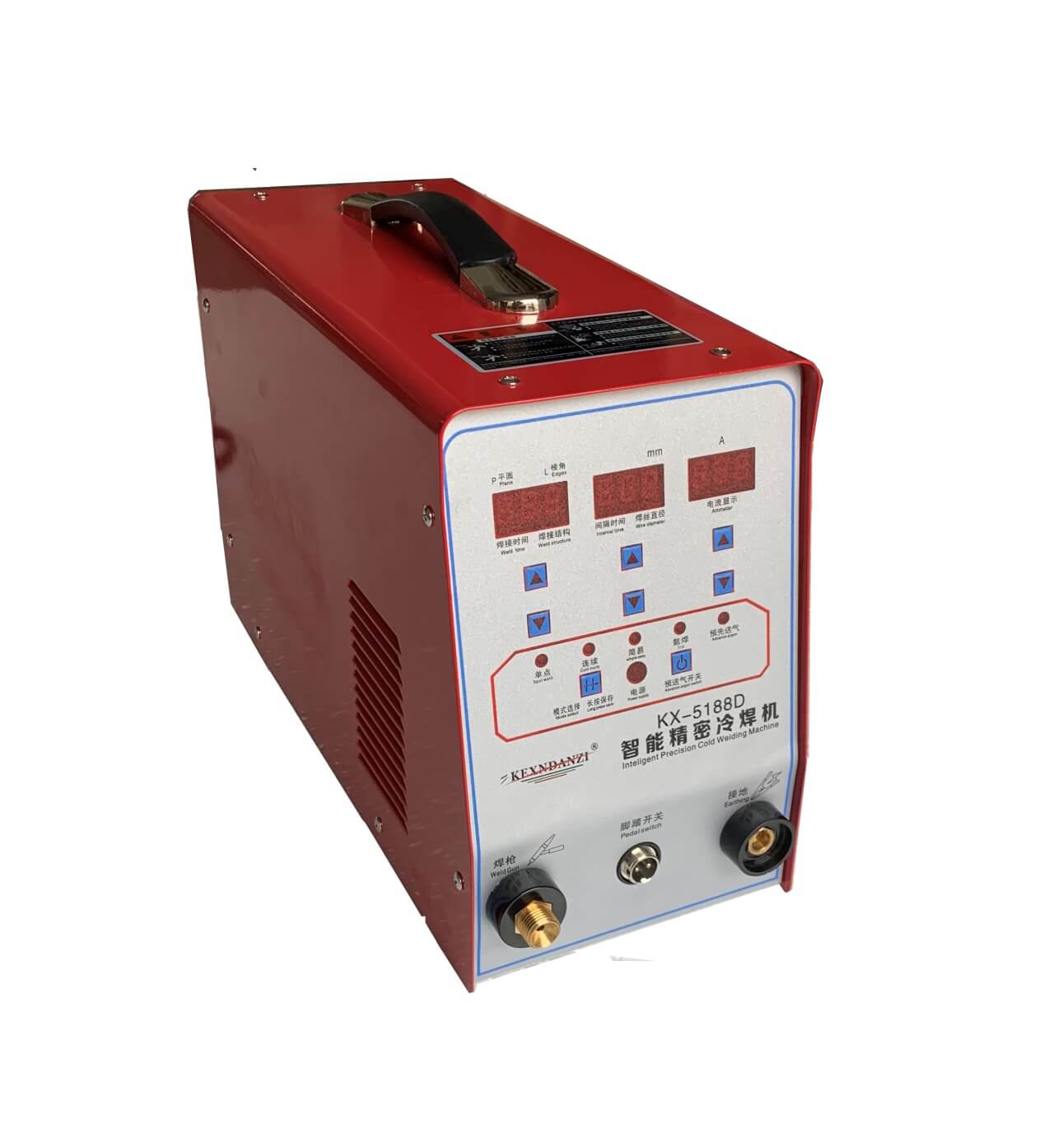

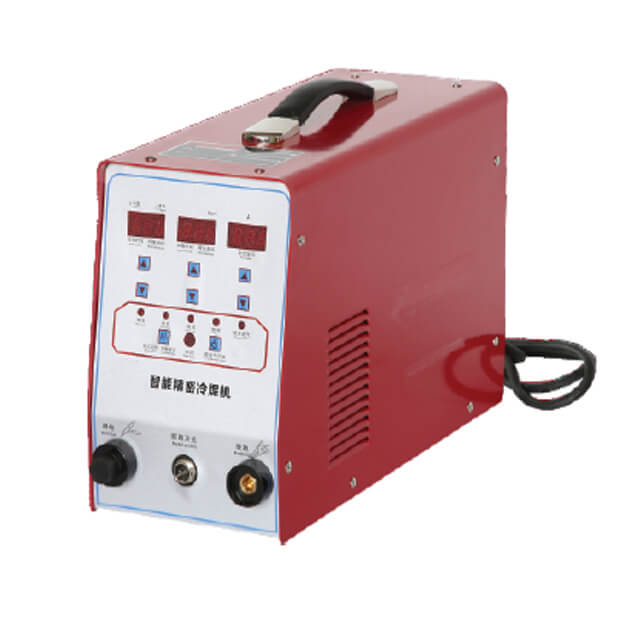

KEXIN KX-5188D Cold welding Machine

Advantages of Cold Welding Machine

TReasonable and free to adjust.
Different discharge frequency can be selected according to different metal materials to achieve the best repair effect.

Heat affected area is small.
There is no heat input in the process of stacking, so there is no deformation, undercut and residual stress.

Doesn’t produce local annealing and reheat treatment after repair.
Cold welding machine has very small repair impact. In the process of welding repair, it overcomes the impact of ordinary argon arc welding on the periphery of workpiece. Repair the machining surface of workpiece without allowance. The thickness of the surfacing is from a few microns to a few millimeters, only need to be polished and polished. The welding strength of cold welding machine is high. It can fully penetrate into the workpiece surface material to produce a strong binding force.

Easy to carry.
It is light (15-25kg) and uses 220V power supply. So it has no working environment requirements. The cold welding machine can be repaired immediately on site, improving production efficiency and save costs.

certificate-3
certificate-2
certificate-1

The cold welding machine is a synchronous argon gas protection system controlled by a microcomputer, which makes the argon gas protection better, the welding effect more firm and beautiful. It can maximize the saving of argon gas.

For more information, you can contact us by phone or email at your convenience.

Model KX-5188D
Product Name Cold Welding Machine
Application Capable for, welding, brazing, soldering.
Voltage 220V±20% 50/60Hz
Output Pulse Frequency 1-10KHz
Power Consumption 10-3000W
Instantaneous Max. Output Power >40KW
Volume 380mmx155mmx250mm
Net Weight 12KG
Gross Weight 20KG

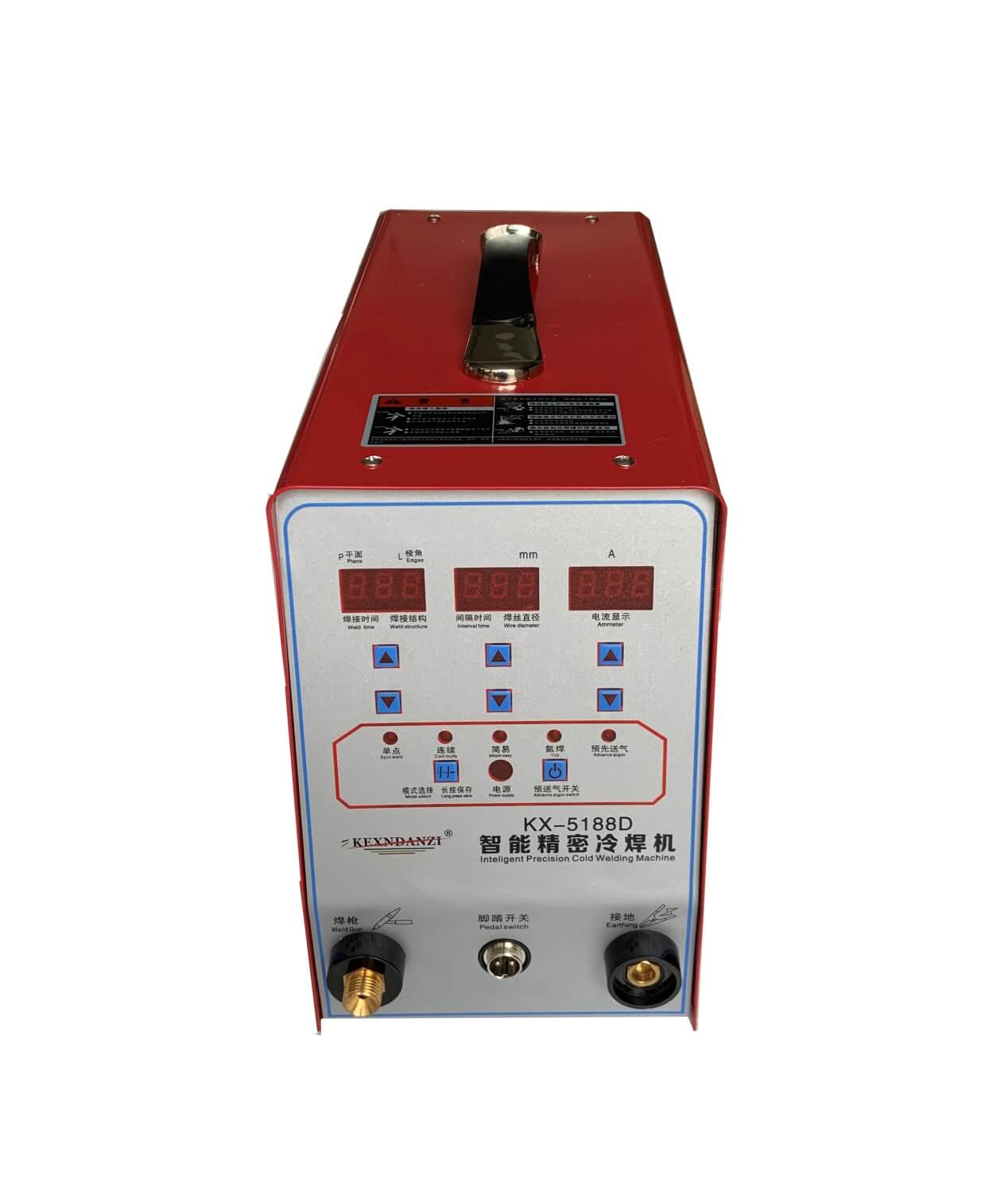

Cold welding Machine2

What is Cold Welding Machine

Cold welding machine is developed by the former Soviet Union experts using the circuit principle similar to electrical discharge machine. The original coating thickness of the machine can only reach about 30μm, so it cannot meet the needs of repair.



After a lot of research and development, t the output power was improved, the structure of the welding gun and the material composition of the electrode were also improved. The cold welding machine is to fuse the special welding wire to the damaged part of the workpiece.

Packing Details

Export standard packing, inner carton outer wooden box and double protection
