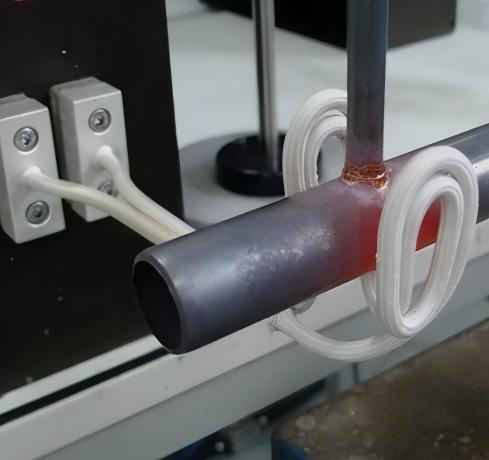

Butterfly Open Induction Coil is manufactured from hollow oxygen‑free copper tube with internal water cooling. It features a symmetrical open butterfly‑shaped layout and forms evenly distributed magnetic field.
The open design facilitates loading and unloading of bulky or irregular workpieces. It matches medium and high frequency induction heating machines and is widely used for brazing, local hardening and heat treatment of curved surfaces and large asymmetric metal components.
Model ：Butterfly Open Induction Coil
Cooling Capacity: Subject to matched induction heating power
Rated Power: Customized according to heating requirements
Power Supply: Matches medium / high frequency induction power supply
Rated Current: Customized on demand
Request A QuoteButterfly Open Induction Coil is manufactured from hollow oxygen‑free copper tube with internal water cooling. It features a symmetrical open butterfly‑shaped layout and forms evenly distributed magnetic field.
The open design facilitates loading and unloading of bulky or irregular workpieces. It matches medium and high frequency induction heating machines and is widely used for brazing, local hardening and heat treatment of curved surfaces and large asymmetric metal components.
| Item | Specification |
| Model | Butterfly Open Induction Coil |
| Cooling Capacity | Depends on matched induction heating power |
| Power Supply | Match medium/high frequency induction power supply |
| Rated Current | Customized |
| Coil Material | Hollow oxygen‑free copper tube |
| Cooling Type | Internal water cooling |
| Heating Characteristic | Linear concentrated heating zone, suitable for scanning quenching and continuous local heating |
| Customization | Custom opening width, coil length and tube size supported |
More melting induction furnaces of Kexin are suitable for metal melting : high frequency melting furnace , medium frequency induction machine.
Export standard packing, inner carton outer wooden box and double protection.
