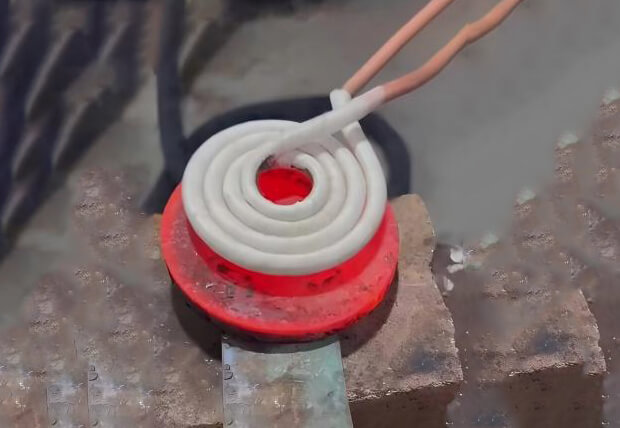

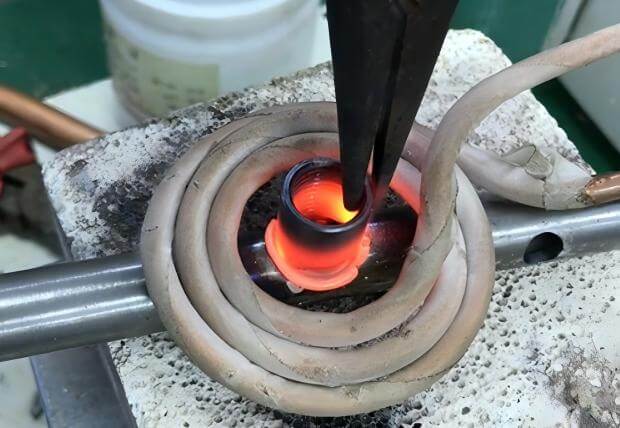

Pancake flat induction coil adopts a flat spiral winding structure made of hollow oxygen‑free copper tube with internal water cooling. It forms concentrated surface eddy currents on the workpiece surface instead of deep penetration heating.
This flat‑type heating inductor is specially designed for working sites with limited vertical installation space, widely matched with medium and high frequency induction heating machines for local planar metal heat treatment and brazing.
Model ：Pancake Flat Induction Coil
Cooling Cpacity: Depends on matched induction heating power
Rated Power: Customized
Power Supply: Match medium/high frequency induction power supply
Rated Current: Customized
Request A QuotePancake flat induction coil adopts a flat spiral winding structure made of hollow oxygen‑free copper tube with internal water cooling. It forms concentrated surface eddy currents on the workpiece surface instead of deep penetration heating.
This flat‑type heating inductor is specially designed for working sites with limited vertical installation space, widely matched with medium and high frequency induction heating machines for local planar metal heat treatment and brazing.
| Item | Specification |
| Coil Material | Hollow oxygen‑free copper tube |
| Cooling Type | Internal water cooling |
| Suitable Workpiece | Flat parts, flange, planar edge workpiece |
| Heating Type | Surface quenching / Local planar heating / Brazing |
| Customization | Custom coil diameter, turns and spacing supported |
More melting induction furnaces of Kexin are suitable for metal melting : high frequency melting furnace , medium frequency induction machine.
Export standard packing, inner carton outer wooden box and double protection.
Get a customized induction heating solution tailored to your production needs. Our engineers will recommend the right equipment and help you get started.
