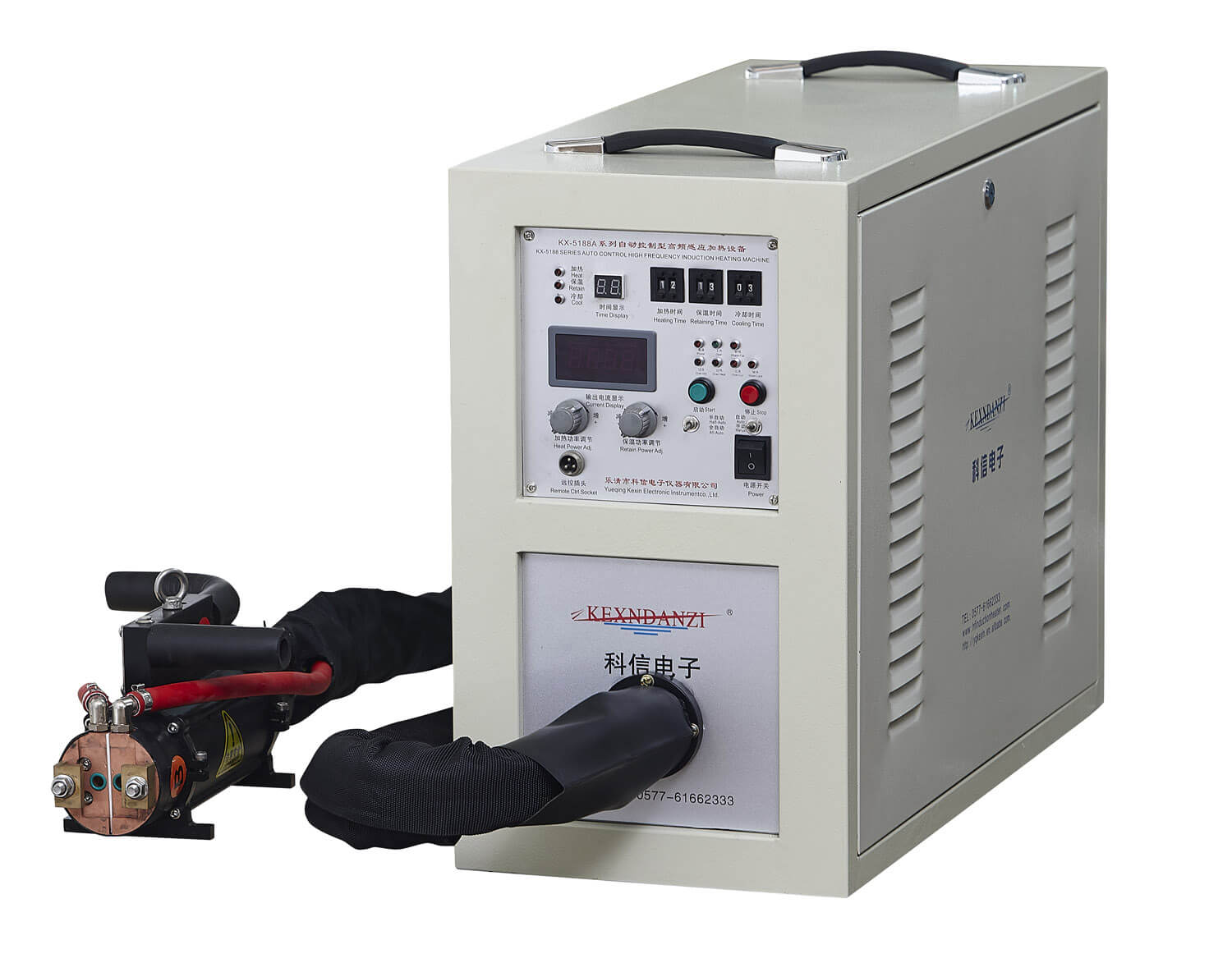

35KW Handheld Type High-frequency Induction Brazing Machine

The 35KW high-frequency portable induction brazing equipment is a compact and efficient tool designed for industrial brazing applications. It uses high-frequency induction heating to quickly and accurately melt the filler metal, achieve non-direct contact connection, and ensure clean, consistent and high-quality welded joints. The 35KW high-frequency portable induction brazing equipment operates on the principle of induction heating, which is a method of transferring energy into the workpiece without contact.

Due to the different brazing cross-sectional sizes, the selected frequency band and power are also different. When the welding cross-sectional area of ​​the high-frequency portable induction brazing equipment is less than 30*30mm, a high-frequency induction brazing heater with a frequency of 60~80KHz is generally used. When the welding cross-sectional area is larger than 30*30mm and the processing volume is large, a high-frequency portable induction brazing equipment with a slightly larger power can be selected, with a frequency between 15~60KHZ.

1) Germany SIEMENS INFINEON IGBT Module (40-60KHZ oscillation frequency, fast response time, high arc stability and almost spatter-free welding).

2) Japan Nichicon electrolytic capacitor (filter capacitor).

3) Adopted signal circuit, drive circuit board, control circuit board and components: Toshiba, Hitachi, Motorola and also China’s top manufacturers.

4) International advanced all-solid-state semiconductor power devices.

5) Imported transistor integrated block.

6) High-speed control tube.

7) As with perfect control, protection and alarm display circuit, the machine could get full automatic tracking frequency and continuously adjustable power. It is also safe and dependable protection, clear and occur data display and etc.

High-frequency brazing machines are more versatile than traditional welding machines. Their functions are far more than just welding. In addition to brazing, they can also be used for processes such as hot melting, smelting, heat treatment (such as surface hardening, quenching, annealing and tempering). Welding is just one of its many applications.

The equipment is commonly used for brazing steel, copper and its alloys, stainless steel, high-temperature alloys and other welding parts with symmetrical shapes. It is especially suitable for pipe fittings, pipes and flanges, shafts and sleeves, as well as turning tool heads and serrated parts.

Melting

High-frequency induction brazing machines can be used for melting alloy tools, such as alloy turning tools, milling cutters, planers, saw blades, reamers, boring cutters, etc.

Welding

Various high-frequency induction heating machine treatments for automobile and motorcycle parts, such as crankshafts, connecting rods, piston pins, camshafts, valves, various gears in Kinds of small shaft crank pins, various rocker arms, rocker shafts, and other high-frequency quenching heat treatment.

Forging

Hot forming for all kinds of standard parts, fasteners, machinery parts, hardware tools, and straight shank twist drills. Metal annealing, such as tensile steel; wire, nail wire heating, and stainless steel annealing.

Packing Details

Export standard packing, inner carton outer wooden box and double protection.
